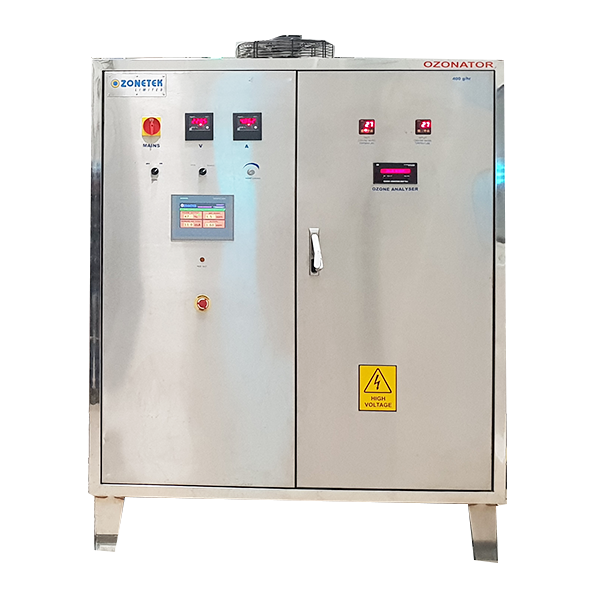

OZONATOR - (150 g/h - 2 Kg/h)

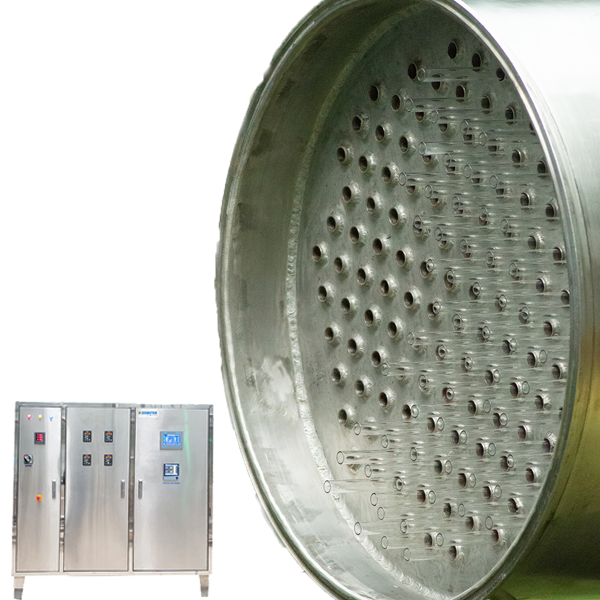

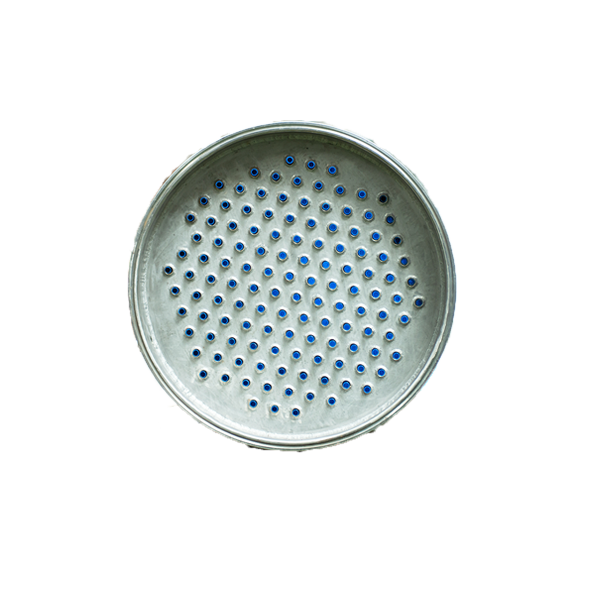

Electrodes
| OZONATOR | O2 FLOW RATE | POWER | DIMENSIONS (W X D X H) | WEIGHT |
|---|---|---|---|---|
| 150 g/h | 2.1m3/h | 1.8 kW | 1200 X 1000 X 1500 mm | 210 Kgs |
| 200 g/h | 2.8 m3/h | 2.4 kW | 1200 X 1000 X 1500 mm | 230 Kgs |
| 300 g/h | 4.2 m3/h | 3.6 kW | 1200 X 1100 X 1500 mm | 260 Kgs |
| 400 g/h | 5.6 m3/h | 4.8 kW | 1400 X 1200 X 1500 mm | 350 Kgs |
| 500 g/h | 7.0 m3/h | 6 kW | 1400 X 1200 X 1500 mm | 380 Kgs |
| 750 g/h | 10.5 m3/h | 9 kW | 1400 X 1300 X 1500 mm | 420 Kgs |
| 1 Kg/h | 14.0 m3/h | 12 kW | 1600 X 1400 X 1500 mm | 520 Kgs |
| 1.5 Kg/h | 21.5 m3/h | 18 kW | 1600 X 1500 X 1500 mm | 560 Kgs |
| 2 Kg/h | 28.0 m3/h | 24 kW | 1800 X 1600 X 1700 mm | 660 Kgs |
OZONATOR - (3 Kg/h - 20 Kg/h)
| OZONATOR | O2 FLOW RATE | POWER | DIMENSIONS (W X D X H) | WEIGHT |
|---|---|---|---|---|
| 3 Kg/h | 42 m3/h | 36 kW | 1300 X 2500 X 2000 mm | 900 Kgs |
| 4 Kg/h | 56 m3/h | 48 kW | 1500 X 2500 X 2000 mm | 1200 Kgs |
| 5 Kg/h | 70 m3/h | 60 kW | 1800 X 2500 X 2000 mm | 1500 Kgs |
| 10 Kg/h | 140 m3/h | 120 kW | 2400 X 2500 X 2000 mm | 2200 Kgs |
| 15 Kg/h | 210 m3/h | 180 kW | 2600 X 2500 X 2400 mm | 2800 Kgs |
| 20 Kg/h | 280 m3/h | 240 kW | 3100 X 2500 X 3000 mm | 3500 Kgs |
